DESCRIÇÃO

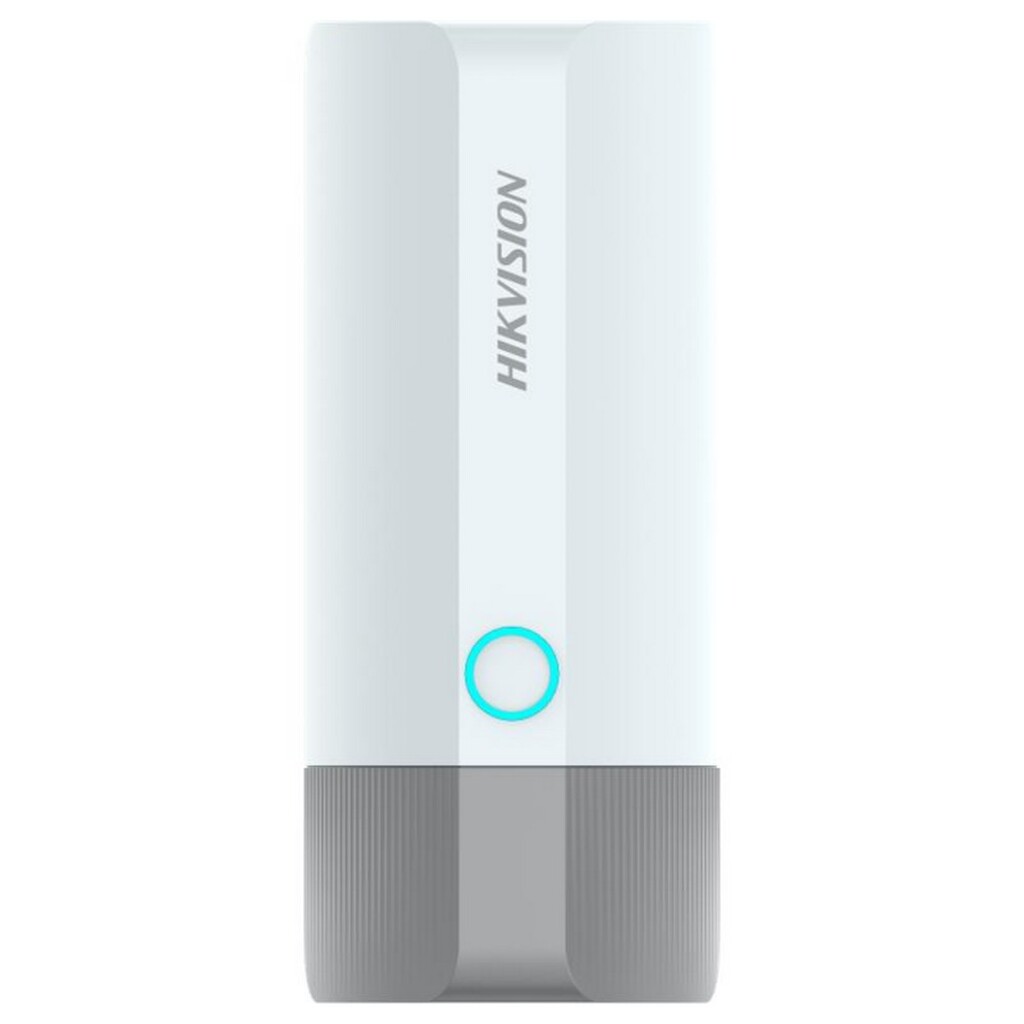

- Marca: Hikvision
- Modelo: DS-3WAP623E-SI
- 1 Gigabit Port with PoE Input
- 802.11ax Wi-Fi 6 2975 Mbps
- 100+ Concurrent User Connections
- Auto RF Optimization
- Support Intelligent Fast Roaming
Geral
- Peso: 1.07 kg (2.35 lb)
- Modo de instalação: Wall-Mounted,Pole
- Temperatura de funcionamento: -30 °C to 55 °C (-22 °F to 131 °F)
- Umidade de funcionamento: 5% to 95% (no condensation)
- Temperatura de armazenamento: -40 °C to 85 °C (-40 °F to 185 °F)
- Umidade de armazenamento: 5% to 95% (no condensation)
- Dimensões do produto (L x A x P): 102 mm × 110 mm × 250 mm (3.97'' × 4.33'' × 9.84'')
- Listagem de pacotes: 3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
- Consumo de energia: Max. 14.4 W
- Classificação IP: IP68
Hardware Specifications
- Interface
- 1 × Gigabit RJ45 uplink port
- Fonte de alimentação
- IEEE 802.3af/at POE,48 VDC 0.3A
- Indicador de LED
- Yellow/green/blue for different working states, flashing mode
WLAN Parameters
- Maximum Number of Clients: 256
- Recommended Number of Clients:100
- Maximum Number of SSIDs: 8
- Banda de frequência de trabalho: radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
- Wi-Fi Standards: Wi-Fi 6
- Wi-Fi Speed: 2.4 G: 575 Mbps,5 G: 2400 Mbps
- Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
- Largura do canal: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
- Number of Antennas: 2.4GHz:2;5GHz:2
- Antenna Type: Built-in omnidirectional antennas
- Ganho da antena: 2.4 GHz: 10 dBi,5 GHz: 5 dBi
- Alimentação de transmissão: 23 dBm
- Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
Software Specifications
- WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
- Management & Maintenance: Centralized AC management
- Version Upgrade: upgrade on Web
